Product Highlights
Description

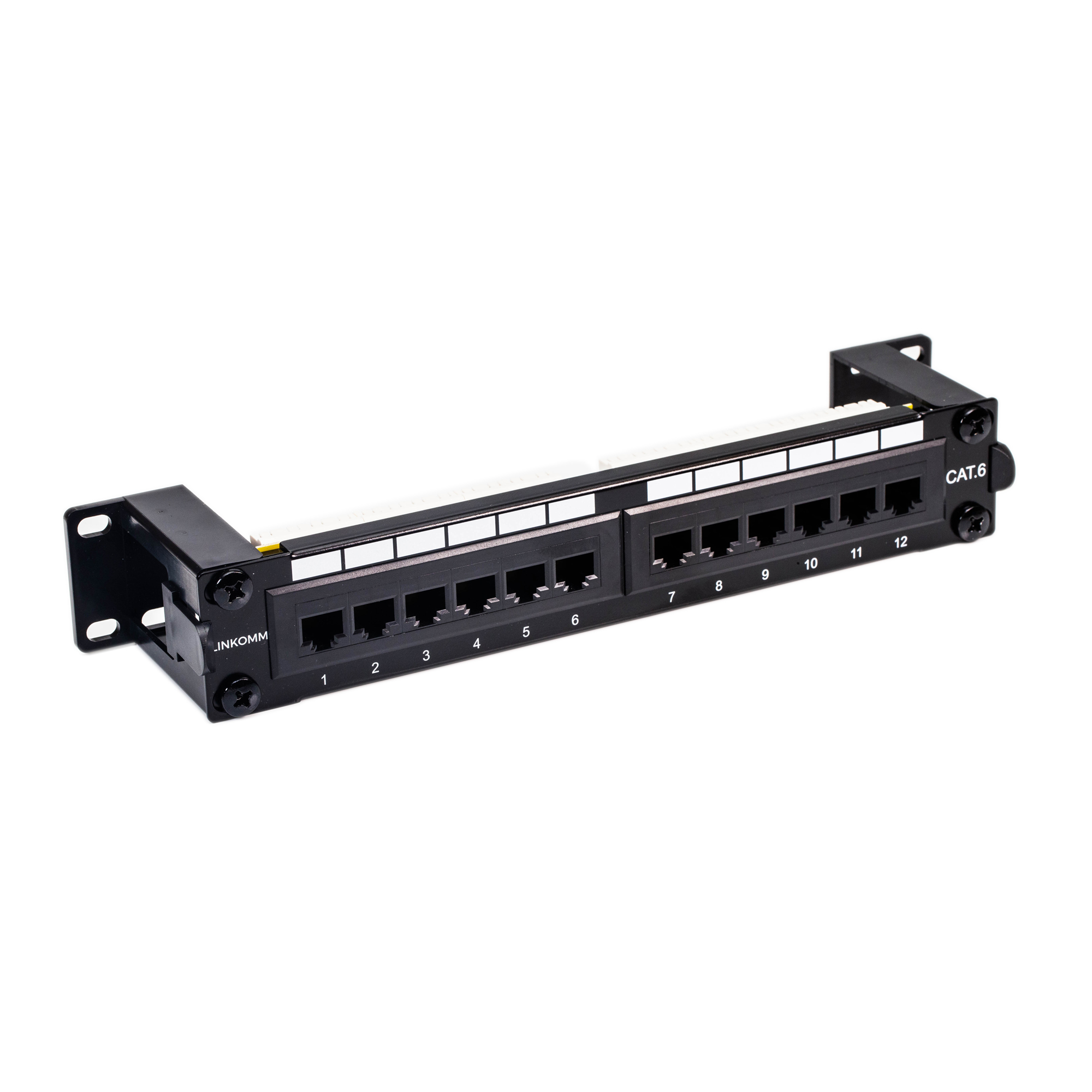

- 12-port 10-inch wall mount patch panel designed for small offices, studios, and home structured cabling environments.
- Cat.6 IDC termination type with backward compatibility for Cat.5e cabling.
- Built-in IDC terminals eliminate the need for keystone jacks, allowing quick and secure punch-down termination.
- Compatible with 110 punch-down tools and supports 23–26 AWG solid or stranded cables with outer diameter 5.0–8.5 mm.

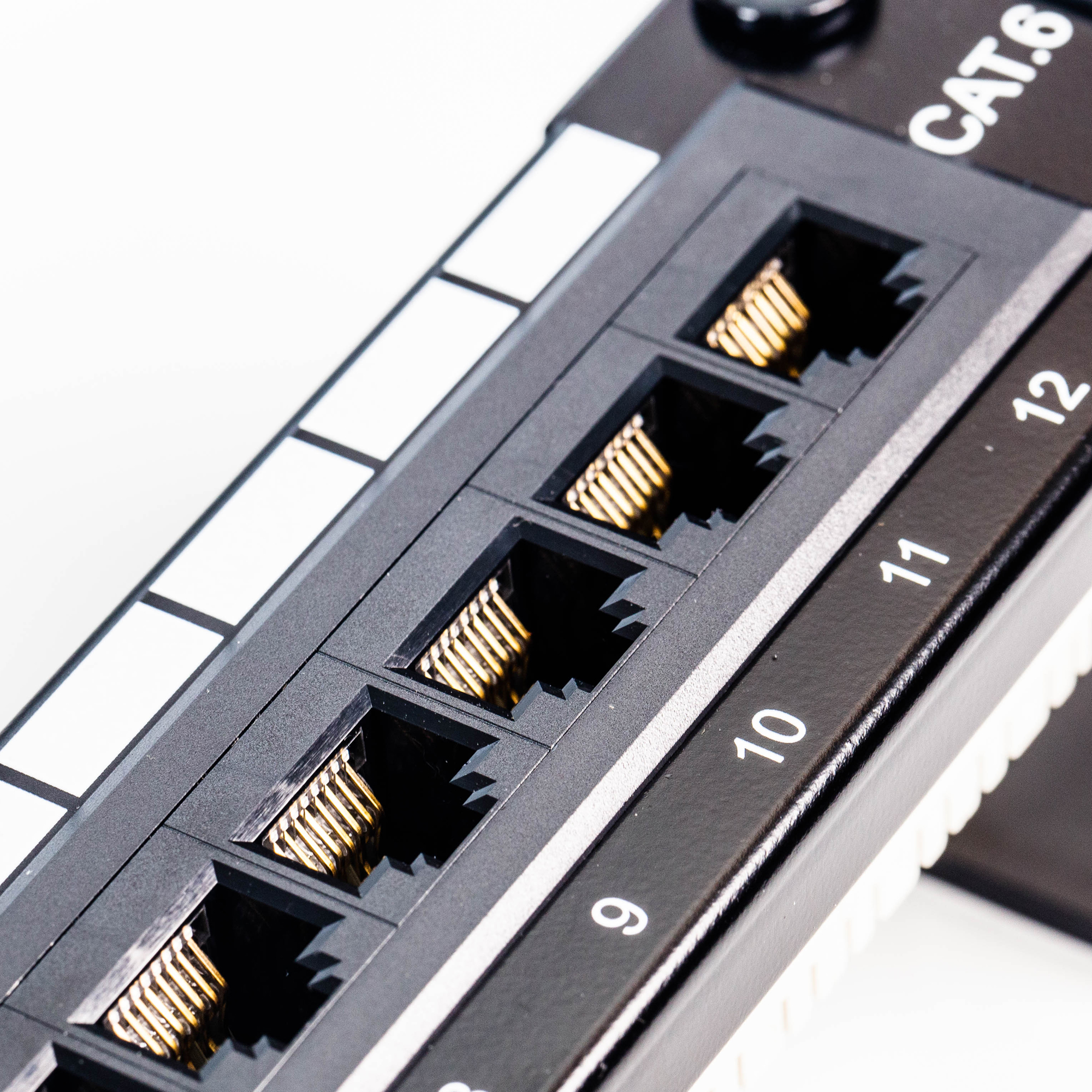

- RJ45 8P8C contacts feature 50μ" gold plating for enhanced conductivity and corrosion resistance.
- Supports Power over Ethernet up to 100W (IEEE 802.3af/at/bt, PoE Type IV, 4PPoE).

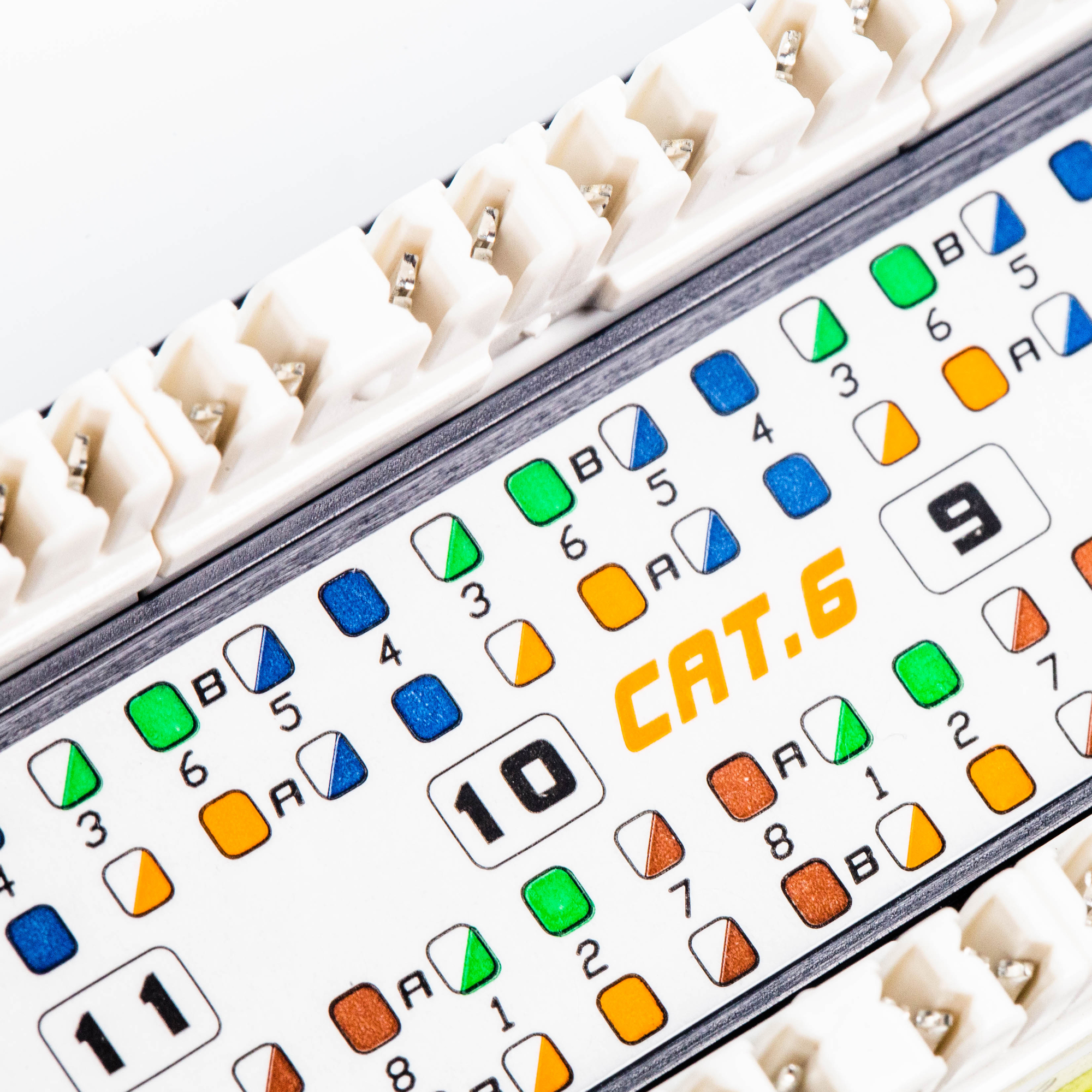

- Color-coded T568A and T568B wiring labels for easy identification and installation.
- Pointed IDC termination design enables faster wire separation and efficient cabling.
- Compact 10-inch form factor saves space and fits perfectly in limited installation areas.

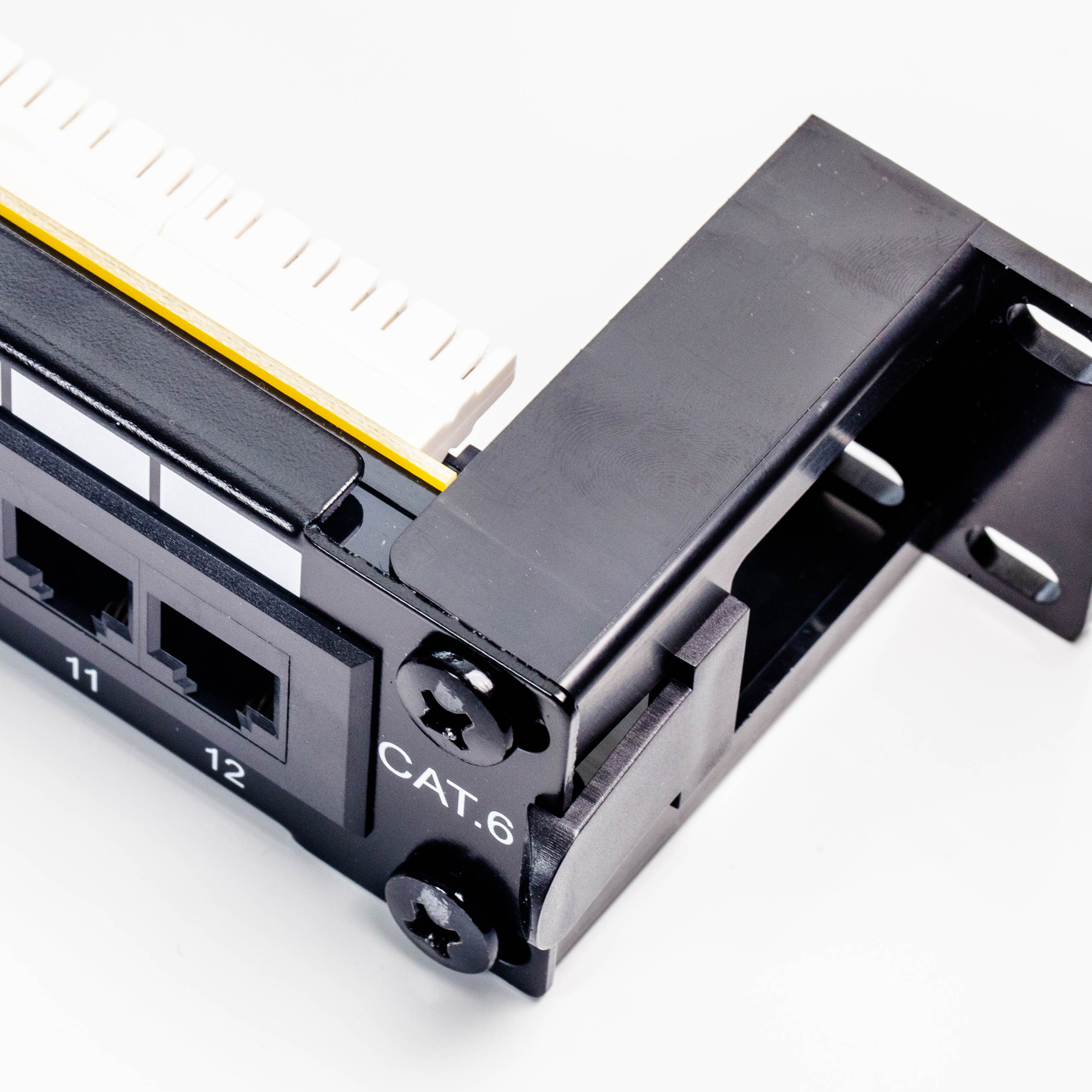

- Constructed with 1.5mm black-coated SPCC steel for strength, durability, and stable wall mounting.
Technical Details
- Front Panel: SPCC, 1.5mm thick, black powder coated (RAL 9005)
- RJ45 Jack Housing: ABS+PC, UL 94V-0 rated
- RJ45 Contact Bracket: PC, UL94V-2
- RJ45 Jack Contact Material: Phosphor bronze, nickel plated
- RJ45 Jack Contact Finish: 50 μin gold plated on plug contact area
- IDC Housing: PC with glass fiber, UL 94V-0 rated
- IDC Terminal: Phosphor bronze, tin plated
- Panel bracket: ABS, UL 94V-0
- PCB: FR4, UL 94V-0
